Learn LLMs Like an Engineer Not a Researcher: A Complete Guide
What engineers actually need to know to build and ship LLM powered products.
If you are learning large language models as an engineer, your goal is not just to understand them but to build, optimize, and ship them. This requires clarity across three layers: how the model works internally, how it is trained and fine tuned, and how it runs efficiently in production.
This guide walks through the full stack with a focus on what actually matters when you are building systems. You can anytime
1. The Core Mental Model
At the simplest level, an LLM does one thing:
It predicts the next token given previous tokens.
Everything else is built around making this prediction accurate, efficient, and useful.
Pipeline:
Text → Tokens → Embeddings → Transformer → Probabilities → Tokens
2. Tokenization and Embeddings
Before anything reaches the model, text is converted into tokens. These are integer IDs representing subwords or characters.
Tokens are then mapped into embeddings, which are dense vectors. These vectors capture semantic meaning and are the actual inputs to the model.
From an engineering perspective:
Token count directly affects cost and latency
Better tokenization improves performance in code and reasoning tasks
3. Positional Encoding (RoPE)
Transformers do not understand order by default. If you shuffle words, the model would treat them the same without positional information.
RoPE (Rotary Positional Encoding) solves this by encoding relative position using rotation in vector space.
Instead of adding position as a separate signal, RoPE rotates embedding vectors based on position.
Why this matters:
Captures relative distance between tokens
Generalizes better to long context
Used in modern models like LLaMA
Engineering insight:
RoPE helps the model understand how far apart tokens are, not just their absolute position.
4. Self Attention: The Core Mechanism
Self attention is the heart of transformers.
Each token looks at all other tokens and decides which ones matter.
Mathematically, attention computes a similarity between tokens and uses it to combine information.
Intuition:
Query asks a question
Key represents what each token contains
Value is the actual information
The model computes how much each token should attend to others and aggregates relevant information.

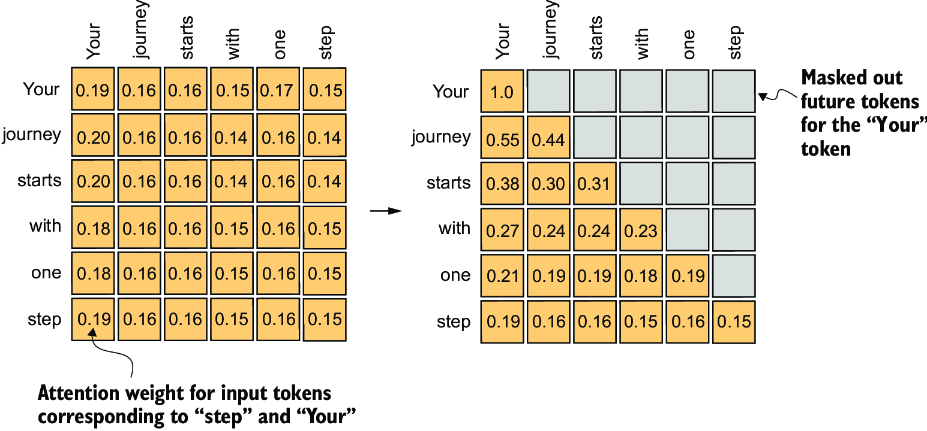

5. Causal Attention: Enabling Generation
In generation tasks, the model must not see the future.
Causal attention ensures that each token only attends to previous tokens.
This makes the model autoregressive, meaning it generates text one token at a time.
Without causal masking, the model would cheat by looking ahead.

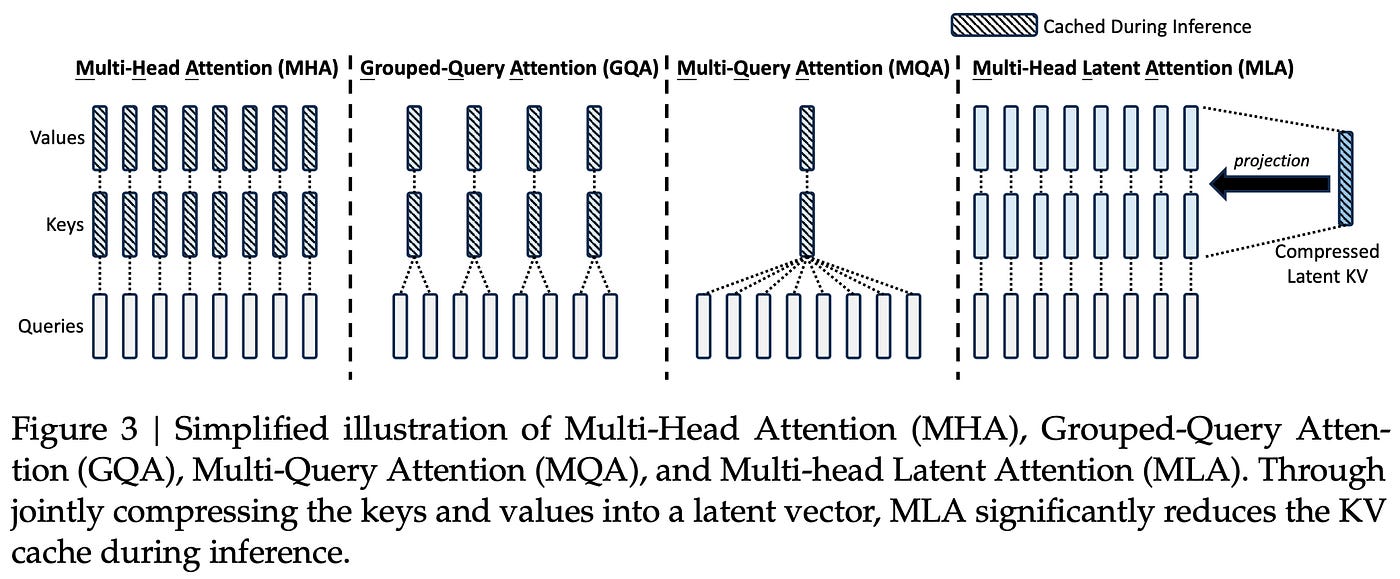

6. Multi Head Attention and Its Variants
Instead of using a single attention mechanism, transformers use multiple heads.

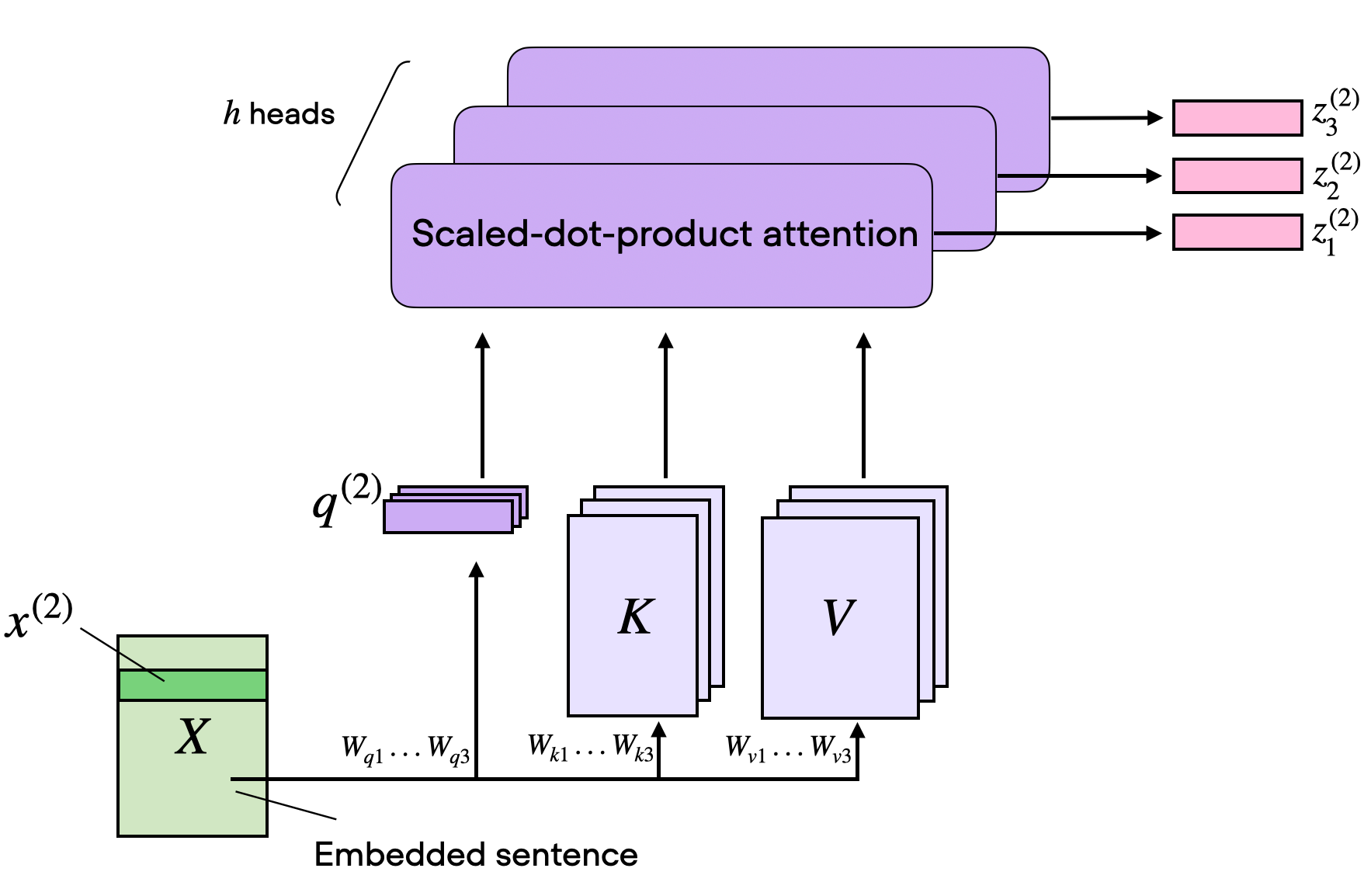

Multi Head Attention (MHA)
Each head learns a different relationship:
Syntax
Semantics
Long range dependencies
This improves representation power.
Multi Query Attention (MQA)
All heads share keys and values.
Benefit:
Reduces memory usage
Faster inference
Grouped Query Attention (GQA)
Heads are grouped, and each group shares keys and values.
This balances performance and efficiency.
From an engineering perspective:
MHA is powerful but heavy
MQA and GQA are optimized for production
7. Transformer Block
A transformer is built by stacking blocks.
Each block contains:
Attention layer
Feed forward network
Residual connections
Layer normalization
Flow:
Input → Attention → Add → Norm → FFN → Add → Norm
Residual Connections
They add the input back to the output of a layer.
This stabilizes training and allows deeper networks.
Layer Normalization
Normalizes activations to keep training stable.
8. Feed Forward Network and SwiGLU
After attention, each token passes through a feed forward network.
This is where computation happens independently per token.
Modern models use SwiGLU activation instead of ReLU.
Why SwiGLU matters:
Better gradient flow
Improved performance
More expressive transformations
From an engineering point of view:
Attention gathers information
FFN processes it
9. Training: From Data to Intelligence
Training starts with pretraining.
Pretraining
Objective: predict next token
This is done on massive datasets using cross entropy loss.
What the model learns:
Language structure
Facts
Patterns
Basic reasoning
Training Challenges
Distributed systems
GPU utilization
Data quality
Memory constraints
Better data often matters more than bigger models.
10. Fine Tuning and Alignment
After pretraining, the model needs to be shaped.
Supervised Fine Tuning (SFT)
Train on instruction response pairs.
This teaches:
Format
Style
Behavior
Instruction Tuning
Expose the model to diverse tasks.
This improves generalization.
Alignment Methods
RLHF
Uses human feedback and reinforcement learning.
DPO
Directly learns from preferred vs rejected responses.
GRPO
Learns by comparing multiple outputs within a group.
Key idea:
Alignment shapes behavior, not knowledge.
11. Parameter Efficient Fine Tuning
Full fine tuning is expensive.
LoRA
Adds small trainable matrices while freezing the base model.
Benefits:
Low memory usage
Fast training
QLoRA
Combines LoRA with quantization.
Enables training large models on small hardware.
12. Quantization: Making Models Deployable
Quantization reduces precision to save memory.
Formats:
FP16
INT8
INT4
Benefits:
Lower memory usage
Faster inference
Tradeoff:
Slight accuracy loss
Common methods:
GPTQ
AWQ
QLoRA
Quantization is critical for production systems.
13. Inference: The Real System
Inference is where everything runs. Mainly focus on vLLM
Loop:
Input → Predict token → Append → Repeat
KV Cache
Stores intermediate values to avoid recomputation.
Reduces compute but increases memory usage.
FlashAttention
Optimizes attention computation by reducing memory movement.
PagedAttention
Manages KV cache using fixed size memory blocks.
Prevents fragmentation and improves efficiency.
Continuous Batching
Dynamically processes requests to maximize GPU usage.
Speculative Decoding
Uses a smaller model to speed up generation.
14. Decoding Strategies
The model outputs probabilities. Decoding converts them into tokens.
Options:
Greedy
Sampling
Top k
Top p
Temperature
These control creativity and determinism.
15. Reasoning Models
Reasoning models generate intermediate steps.
Techniques:
Chain of thought
Self consistency
Tool usage
Tradeoff:
Better accuracy
Higher cost and latency
16. Training Tools and Practical Stack
To work as an engineer, you need tools.
Hugging Face
Model loading
Training pipelines
Datasets
Unsloth
Faster LoRA and QLoRA training
Lower memory usage
Optimized kernels
vLLM
High-performance LLM inference
PagedAttention for efficient KV cache
Continuous batching for better throughput
Optimized GPU utilization for production
Typical workflow:
Load base model
Apply LoRA
Train with Unsloth
Evaluate
Export for inference
Serve using vLLM
17. The Real Engineering Insight
To build LLM systems, you must understand tradeoffs:
Accuracy vs latency
Memory vs speed
Cost vs quality
Most real world work is about balancing these.
18. Final Mental Model
An LLM system is made of layers:
Model layer:
Attention
Transformer blocks
Training layer:
Pretraining
Fine tuning
Alignment
System layer:
KV cache
FlashAttention
PagedAttention
Batching
Optimization layer:
LoRA
Quantization
Conclusion
Learning LLMs as an engineer means going beyond theory.
You need to understand:
How attention works
How models are trained
How behavior is aligned
How systems are optimized
I am recently learning about fine-tuning LLMs, distributed training, reasoning model and inference engineering till deployment.
Upcoming articles, will be more on LLM engineering and inference. I am going to design an entire LLM inference pipeline and update on X.
